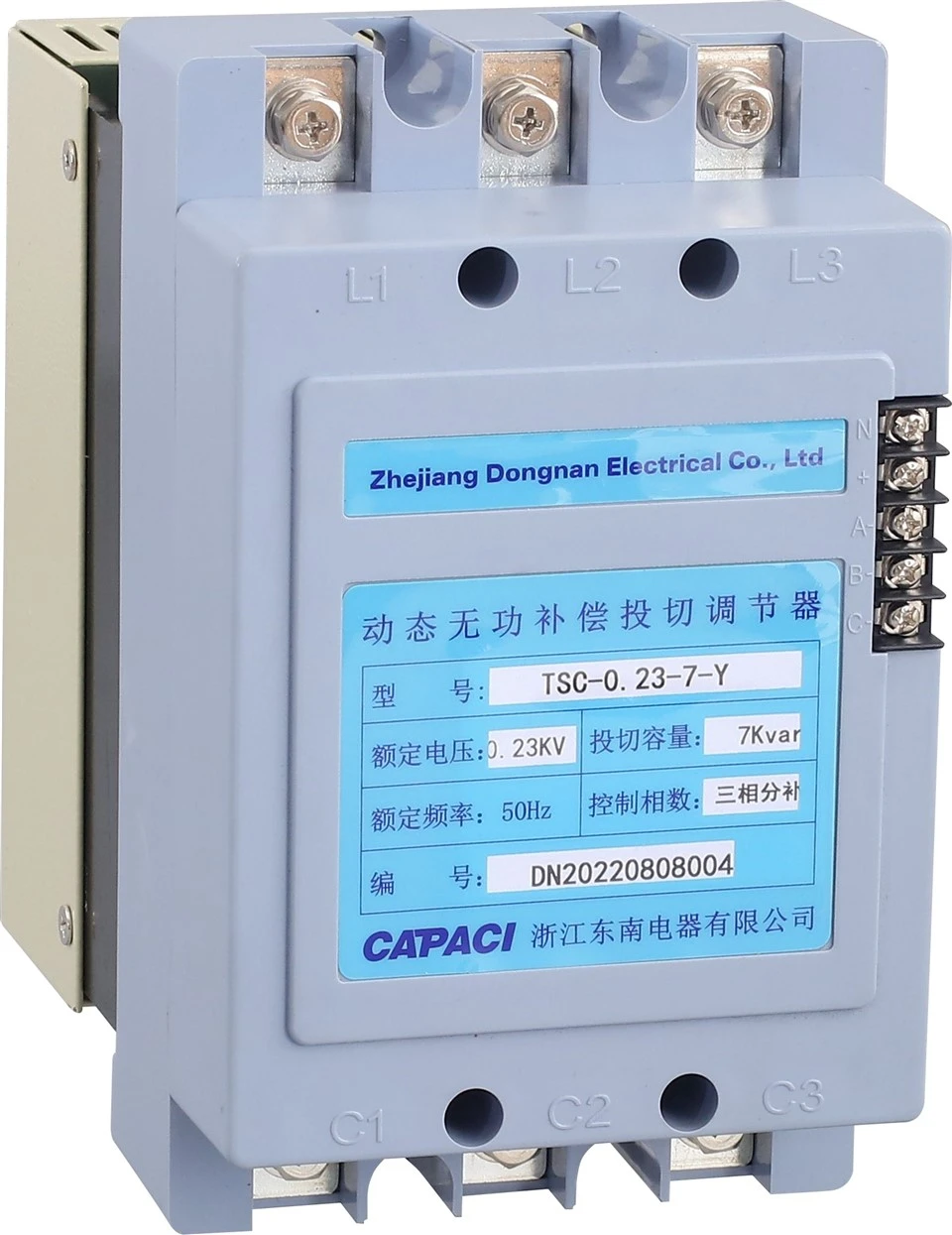

Auto Power Factor Controller

Auto power factor controller is designed for low-voltage dynamic reactive power compensation systems that require fast capacitor switching, reliable phase compensation, and stable power factor performance under changing load conditions. This TSC series reactive power compensation switching regulator is an electronic power device used for rapid switching of parallel capacitors in AC 50/60Hz distribution systems with rated working voltage of 400V or 230V. The main circuit adopts anti-parallel thyristor modules, and the triggering circuit, synchronization circuit, and control circuit work together to complete accurate switching operation. The control circuit and control signal use photoelectric isolation to reduce mutual interference during operation. When the compensation controller sends a switching signal, the thyristor conducts or cuts off, allowing the corresponding capacitor bank to be connected or disconnected quickly. Compared with traditional electromagnetic contactors, this auto power factor controller helps reduce inrush current, overvoltage, sparks, and operating noise, making it suitable for dynamic compensation cabinets that require frequent switching and higher operating stability.

Our factory develops this product for compensation cabinet manufacturers, electrical panel builders, industrial power distribution projects, and overseas distributors who need a practical switching component for split compensation applications. In many low-voltage distribution systems, three-phase loads are not always balanced. Equipment such as motors, welding machines, elevators, pumps, compressors, production lines, and commercial building loads may create different reactive power demands on each phase. This TSC-0.23-10-Y model is suitable for split compensation capacitor control, using capacitors with a three-phase Y connection and rated voltage of 0.23KV. The control signal is divided into three channels, allowing A, B, and C phases to be switched separately according to the system design. For buyers who need an auto power factor controller for more flexible phase compensation, this product can be integrated with dynamic controllers, capacitors, contactors, and related compensation cabinet components to build a complete reactive power compensation solution. With overheat protection, simple wiring, convenient maintenance, and clear installation requirements, it helps distributors and project customers reduce field installation risk and improve cabinet operating reliability.

Split compensation cabinets
Used in low-voltage split compensation cabinets where A, B, and C phases need separate capacitor switching according to actual reactive power demand.
Three-phase unbalanced load systems
Suitable for sites where phase loads are not evenly distributed, helping the compensation system respond more accurately to different phase conditions.
Industrial power distribution projects
Applied in factories, workshops, pump stations, compressor rooms, production lines, and equipment-intensive facilities that require fast and reliable reactive power compensation.
Commercial building electrical systems
Used in office buildings, shopping centers, hotels, hospitals, and public facilities where load fluctuation may vary by phase and throughout different operating periods.
Panel builder and cabinet assembly projects
Designed for electrical panel manufacturers and compensation cabinet builders who need a compact, thyristor-based switching device for 230V split compensation configurations.



• Our factory has been engaged in electrical product manufacturing since the early 1990s, with long-term focus on capacitor switching contactors and reactive power compensation components. We operate a production facility of more than 3,000 square meters, have our own R&D team, and maintain a monthly production capacity of about 5,000 units. For overseas buyers purchasing auto power factor controller products, this means the supply is supported by a stable manufacturer rather than a temporary trading source.
•
  Our product range includes capacitor switching contactors, AC contactors, self-healing low-voltage parallel power capacitors, dynamic reactive power compensation switching regulators, ultra-fast dynamic reactive power compensation switching regulators, intelligent capacitor composite switches, automatic reactive power compensation controllers, and harmonic filters. This product structure is useful for cabinet manufacturers and distributors because different compensation cabinet projects often require matched components. By sourcing related products from one factory, customers can reduce communication cost, improve model matching efficiency, and build a stronger local product catalog around reactive power compensation solutions.

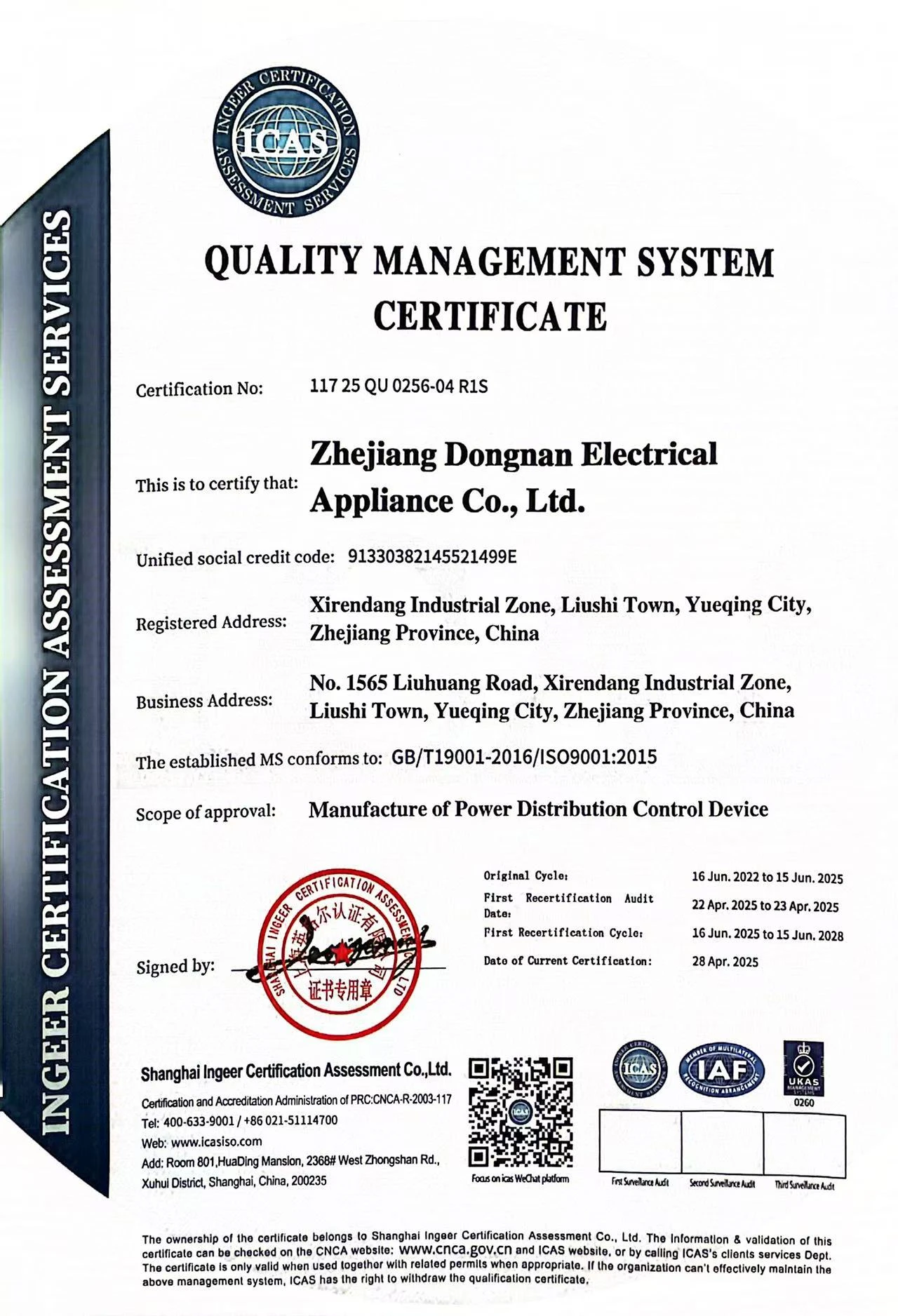

Our factory has ISO9001 quality management system certification and CCC National Compulsory Product Certification. During production, we apply regular inspection methods and carry out 100% inspection before packing. Third-party inspection is accepted when required by customers or engineering projects. For this auto power factor controller, quality control focuses on thyristor module assembly, control signal response, A/B/C phase switching reliability, terminal connection condition, insulation safety, heat protection, label accuracy, and packing condition.

Because this model is used for split compensation, correct wiring and phase control are especially important. The product instruction recommends that the main terminal can connect up to 25mm² insulated wire, and terminal lugs should be used to improve connection reliability. Semiconductor fast fuses such as NGT or NTOO type are recommended, and the TSC-0.23-10-Y model uses a recommended fuse rated current of 63A. During cabinet installation, the heat sink and temperature-controlled fan area should have enough ventilation space. These practical details help panel builders reduce wiring mistakes, improve commissioning efficiency, and support more stable long-term operation of the compensation system.

We provide pre-sales technical consultation, order progress follow-up, and after-sales support for customers purchasing reactive power compensation components. Before ordering, we can help customers choose suitable models according to system voltage, compensation capacity, control method, capacitor connection mode, cabinet layout, and phase compensation requirements. We can also provide wiring guidance, installation information, dimensional references, and technical data for project communication. OEM/ODM service is available for suitable orders, including discussions on casing color, logo, control voltage, labels, and other project-based customization needs.

During production and delivery, we can follow up order progress and provide photos or videos when necessary. After delivery, our after-sales team can provide remote technical support for installation, commissioning, and troubleshooting. The product warranty period is one year. If goods are damaged after arrival, we will communicate according to the actual situation and provide a reasonable handling solution. We want distributors and project buyers to sell auto power factor controller products with clearer technical support, more reliable documentation, and stronger confidence in repeat cooperation.
